Side Arm Heat Exchanger 34"

More Views

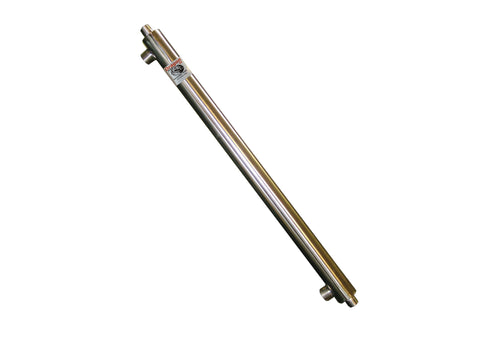

Side Arm Heat Exchanger 34"

Part Number: SA95

  • Manufacturer:
  • Valutech

  • Color:
  • Stainless Steel

  • Material:
  • 304 Stainless Steel

  • Installation Type:
  • 3/4" MPT

  • Warranty:
  • 1 Year Warranty

  • Size:
  • 34"

  • Qty:
  • $138.34

High Quality Fin-Enhanced Sidearm Heat Exchanger is designed with the natural thermo-siphon   concept on domestic hot water side. Traditional sidearms are made of two bare copper tubes. Thus, its capacity is decided by the length of sidearm-tubes and the heat transfer efficiency is very low.

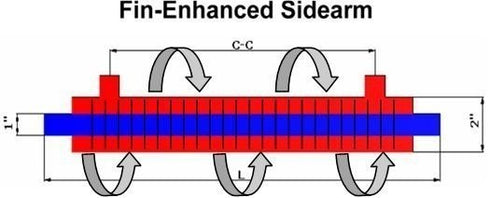

Made of 304 stainless steel, fin-enhanced sidearm increases heat transfer efficiency significantly by using a finned tube internally, which has surface area five to eight times bigger than bare tube and produces great turbulence on system side.

With fin-enhanced sidearm you not only need a shorter unit, but get bigger capacity and faster heating.
domestic water coils


Write Your Own Review

Only registered users can write reviews. Please, log in or register

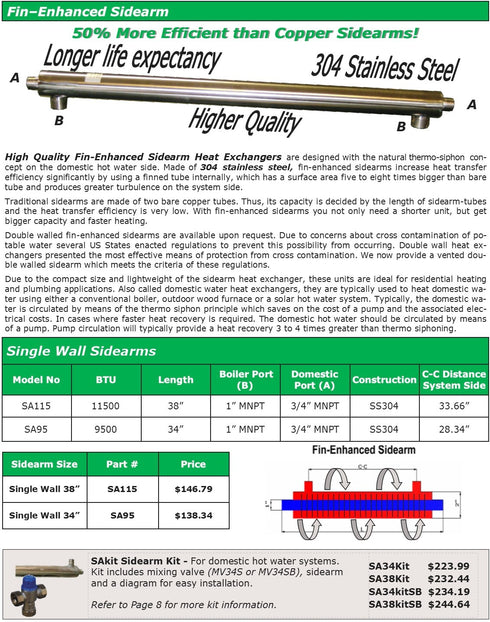

SideArm Specs

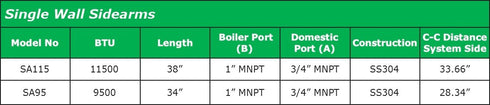

SideArm Chart

High Quality Fin-Enhanced Sidearm Heat Exchanger is designed with the natural thermo-siphon   concept on domestic hot water side. Traditional sidearms are made of two bare copper tubes. Thus, its capacity is decided by the length of sidearm-tubes and the heat transfer efficiency is very low.

Made of 304 stainless steel, fin-enhanced sidearm increases heat transfer efficiency significantly by using a finned tube internally, which has surface area five to eight times bigger than bare tube and produces great turbulence on system side.

With fin-enhanced sidearm you not only need a shorter unit, but get bigger capacity and faster heating.

Double walled fin-enhanced sidearms are available upon request. Due to concerns about cross contamination of potable water several US States enacted regulations to prevent this possibility from occurring. Double wall heat exchangers presented the most effective means of protection from cross contamination. We now provide a vented double walled sidearm which meets the criteria of these regulations.

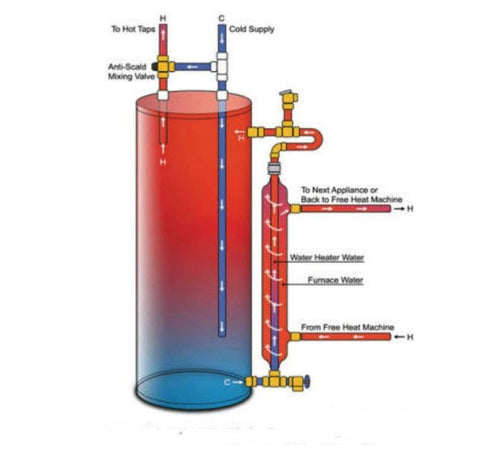

Due to the compact size and lightweight of the sidearm heat exchanger these units are ideal for residential heating and plumbing applications. Also called domestic water heat exchangers, they are typically used to heat domestic water using either a conventional boiler, outdoor wood furnace or a solar hot water system. Typically the domestic water is circulated by means of the thermosiphon principle which saves on the cost of a pump and the associated electrical costs. In cases where faster heat recovery is required the domestic hot water should be circulated by means of a pump. Pump circulation will typically provide a heat recovery 3 to 4 times greater than thermosiphoning.
